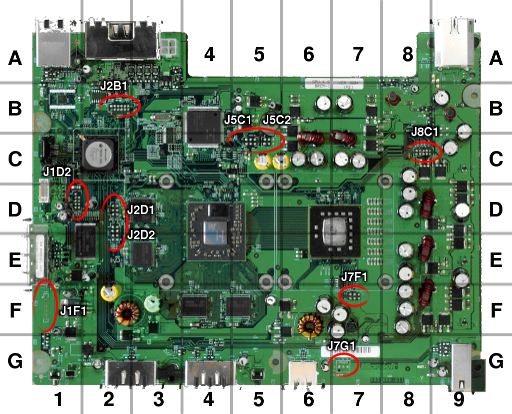

Pin Headers
There are ten sets of pin headers on the board. They are numbered
according to the PCB sections (J X Y N).
| ID |
#Pins |
Purpose |
| J1D2 |
9 |
XDK Debug Header #2 |
| J1F1 |
6 |
Southbridge LED Header |

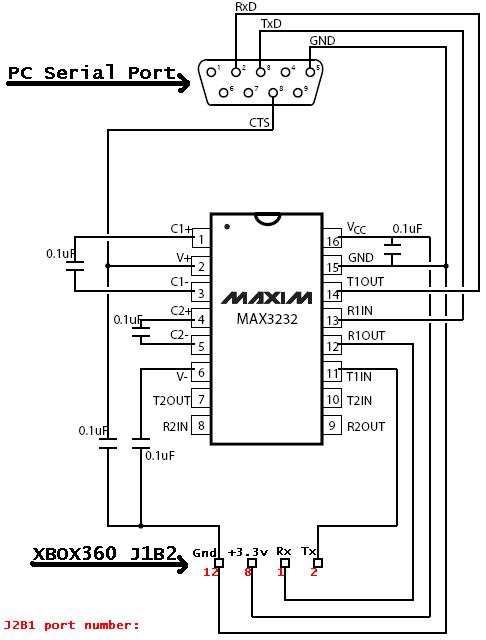

| J2B1 |
13 |
XDK Debug header |
| J2D1 |
6 |
Southbridge Header |
| J2D2 |
8 |
GPU Header |
| J5C1 |
6 |
ANA Header |
| J5C2 |
6 |
GPU SPI EEPROM Header |
| J7F1 |
6 |
CPU SPI EEPROM Header |
| J7G1 |
3 |
Aux Power Header |
| J8C1 |
10 |
CPU JTAG Header |
|
|
|
J1D2, J2D1, J2D2
|
|
|
|
| J1D2 |
Pin |
Signal |
Description |
| 1 |
|
Unknown |
|
| 2 |
|
Unknown |
|
| 3 |
|
Unknown |
|
| 4 |
|
Unknown |
|
| 5 |
|
Unknown |
|
| 6 |
|
Unknown |
|
| 7 |
|
Unknown |
|
| 8 |
GND |
Ground |
|
| 9 |
GND |
Ground |
|
|
|
|
|
| J2D1 |
Pin |
Signal |
Description |
| 1 |
|
Unknown |
|
| 2 |
|
Unknown |
|
| 3 |
|
Unknown |
|
| 4 |
|
Unknown |
|
| 5 |
|
Unknown |
|
| 6 |
GND |
Ground |
|
|
|
|
|
| J2D2 |
Pin |
Signal |
Description |
| 1 |
|
Unknown |
|
| 2 |
|
Unknown |
|
| 3 |
|
Unknown |
|
| 4 |
|
Unknown |
|
| 5 |
|
Unknown |
|
| 6 |
GND |
Ground |
|
| 7 |
|
Unknown |
|
| 8 |
|
Unknown |
|
